Caddx Ratel 1-1.8'' Starlight HDR OSD 1200TVL NTSC- PAL 16:9-4:3 Switchable 1.66mm-2.1mm Lens FPV Camera For RC Drone Quadcopter

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Caddx Ratel 1-1.8'' Starlight HDR OSD 1200TVL NTSC- PAL 16:9-4:3 Switchable 1.66mm-2.1mm Lens FPV Camera For RC Drone Quadcopter

Caddx Ratel 1-1.8'' Starlight HDR OSD 1200TVL NTSC- PAL 16:9-4:3 Switchable 1.66mm-2.1mm Lens FPV Camera For RC Drone Quadcopter

Caddx Ratel 1/1.8'' Starlight HDR OSD 1200TVL NTSC/ PAL 16:9/4:3 Switchable 1.66mm/2.1mm Lens FPV Camera For RC Drone Quadcopter

Description:
Brand Name: Caddx
Item Name: Ratel

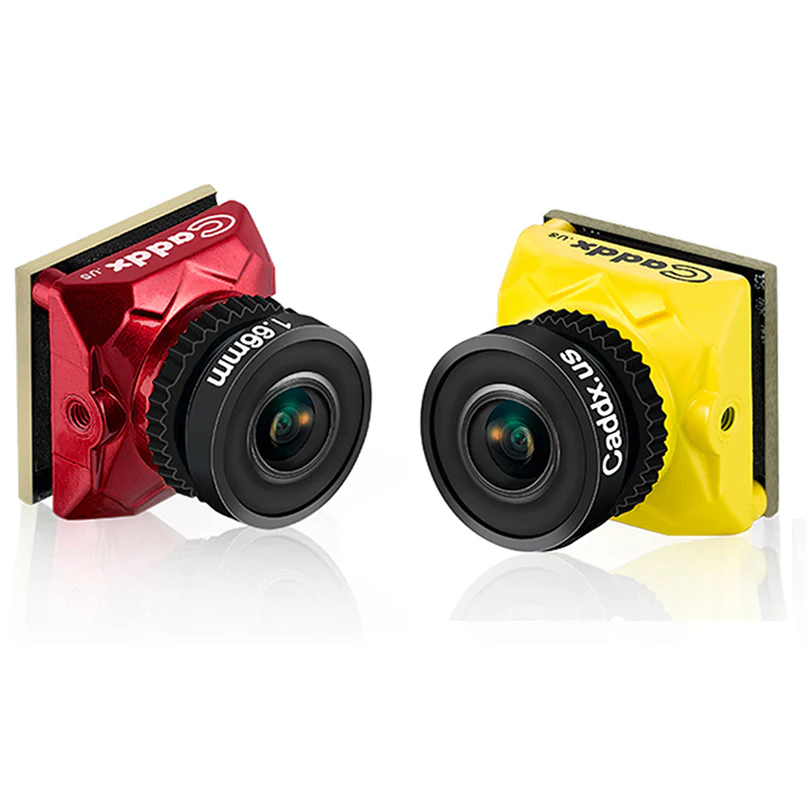

Color: Red, Yellow (optional)
Lens: 1.66mm, 2.1mm (optional)
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 180 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio:  >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 8g (N.W.)/ 40.5g (G.W.)

Features:

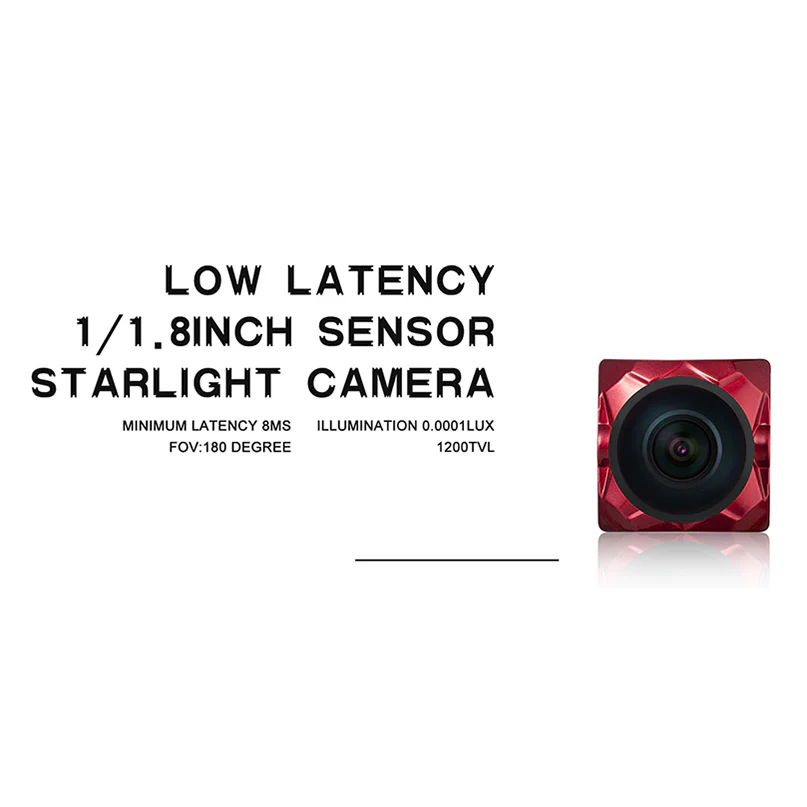

- 1/1.8" inch sensor starlight camera
- 8ms ultra low latency, 0.0001lux illumination
- Red and yellow two colors optional
- NTSC/PAL switchable, 16:9/4:3 changable
- Separate OSD

Package Included:
1x Caddx Ratel Camera
1x Aluminum Bracket
1x 5D-OSD Menu Board
1x FPV Silicone Cable A (3-pin port for both side)
1x FPV Silicone Cable B (2-pin port for both side)
1x Internal Hexagonal Wrench
1 Set x Screws
1x Warranty Card
Select Color
From $21.55

Original: $61.58

-65%
Caddx Ratel 1-1.8'' Starlight HDR OSD 1200TVL NTSC- PAL 16:9-4:3 Switchable 1.66mm-2.1mm Lens FPV Camera For RC Drone Quadcopter—

$61.58

$21.55

Product Information

Shipping & Returns

Description

Caddx Ratel 1/1.8'' Starlight HDR OSD 1200TVL NTSC/ PAL 16:9/4:3 Switchable 1.66mm/2.1mm Lens FPV Camera For RC Drone Quadcopter

Description:
Brand Name: Caddx
Item Name: Ratel
Color: Red, Yellow (optional)
Lens: 1.66mm, 2.1mm (optional)
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 180 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio:  >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 8g (N.W.)/ 40.5g (G.W.)

Features:
- 1/1.8" inch sensor starlight camera
- 8ms ultra low latency, 0.0001lux illumination
- Red and yellow two colors optional
- NTSC/PAL switchable, 16:9/4:3 changable
- Separate OSD

Package Included:
1x Caddx Ratel Camera
1x Aluminum Bracket
1x 5D-OSD Menu Board
1x FPV Silicone Cable A (3-pin port for both side)
1x FPV Silicone Cable B (2-pin port for both side)
1x Internal Hexagonal Wrench
1 Set x Screws
1x Warranty Card
